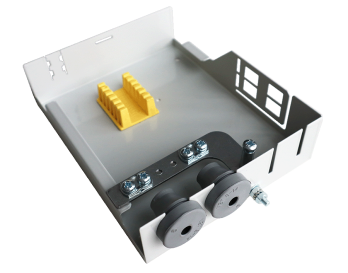

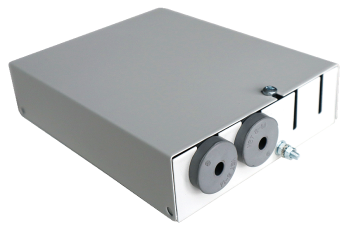

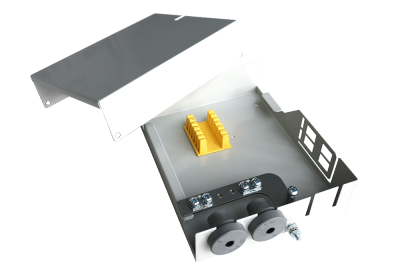

Our Nestor Termination Box 24 is a wall mounted termination box for indoor installations. It is designed for terminating and jointing various types of fibre optic cables and allows you to bring fibre optic cables directly indoors. The termination box includes an integrated adapter plate for SC-S or LC-D adapters (4 pcs).

The capacity of the Nestor Termination Box 24 depends on the connector selections. The capacity is:

• 24 fibre splices without connectors
• 4 fibre splices with SC-connectors
• 8 fibre splices with LC-connectors

Nestor Termination Box 24 includes following cable ports:

• 2 pcs - M20 cable grommet for Ø 8-13 mm cable diameters
• 2 pcs - Groove for max. Ø 3 mm patch cords
• 1 pc - Foldable port for max. Ø 11,5 mm cable diameters
• 1 pc - Square port for max. Ø 11,5 mm cable diameters

Nestor Termination Box 24 is delivered as a basic assembly or as a pre-installed pigtail kit including adapters and pigtails according to customer specifications. Also available as pre-assembled pigtail cable kit with 0-100 m connectorized indoor cable with tested connectors pre-installed to adapters. Learn more on the product page!

Also check out the Nestor Termination Box 48, which has a capacity of 48 fibre connections.
