This year, new Nestor Steel Closure joint closures have been added to the range of joint closures. These new joint closures have a modular design and offer the convenience of increased connection capacity through the use of extra splice trays. The joint closure is available in two different sizes, the smaller version with a capacity of up to 72 fibre splices and the medium version with a capacity of up to 288 fibre splices.

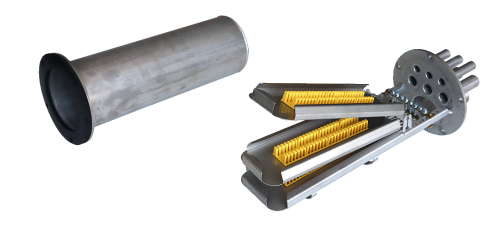

Pictured above Nestor Steel Closure Medium

The robust construction of the joint closure is suitable for demanding conditions and their small size makes them suitable for a wide range of installations. Nestor Steel Closure joint closures can be installed directly in the ground, in a pit, on a pole or on a wall.

Nestor Steel Closure joint closures are quick and easy to install, minimising the time spent on site and increasing the speed of network deployment.

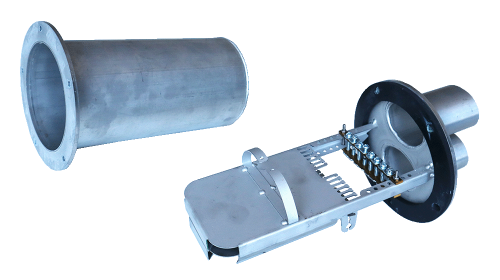

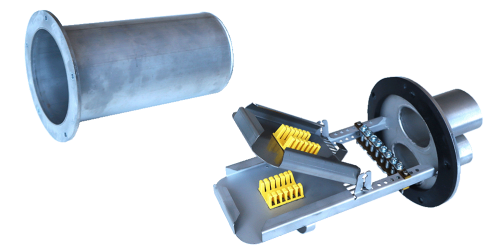

Pictured above Nestor Steel Closure Small

Benefits of Nestor Steel Closure joint closures

•  Perfect for harsh environments.
  • IP68-rated watertight base and dome with screws and secure sealing system.
  • Robust and bulletproof construction.
  • Made of acid-proof stainless steel.
• Easy-to-access mechanical compression port seals or traditional heat-shrinkable port seals.
  • Wide range of mechanical port seals available up to 23 mm.
  • Heat-shrinkable port seals available up to 25 mm.
• Safe area below splice trays for midspan storage.
• Mounting- and grounding bars for incoming cables.
• Quick and easy installation of extra splice trays

Pictured above safe area below splice trays for midspan storage.

Two sizes - up to 288 splices

The new joint closures are now available in Small and Medium versions. The capacity of the joint closures can be increased by one or two additional splice trays.

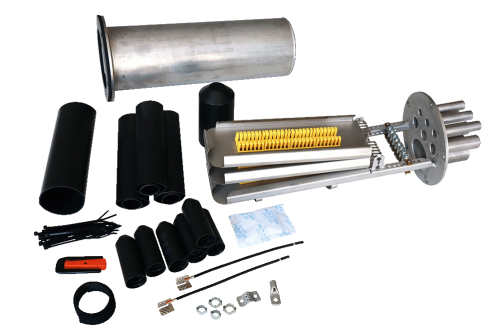

Pictured above: the joint closures come with a range of accessories.

For more detailed product information, see the product pages of the joint closures Nestor Steel Closure Small or Nestor Steel Closure Medium. Please also see our other joint closures.
