Termination box NC-112

NC-112 SC-D is a small and universal type of termination box for terminating up to 24 fibres. It is especially developed for different kind of industrial and telematic applications.

Features

• For indoor installations
• Can be used with different type of indoor or outdoor cables
• Two cable inlets on the foot
• 6 adapter holes for SC-Duplex adapters on the right side and on the top
• Capacity for 24 fibres
• Fibre splices are placed to the rubber holders that can be fastened freely to the bottom of the panel
• Each holder has space for 12 fibre protection sleeves
• Colour: RAL 7035 (grey)
• Can be mounted to DIN trail from the side with a separate mounting part

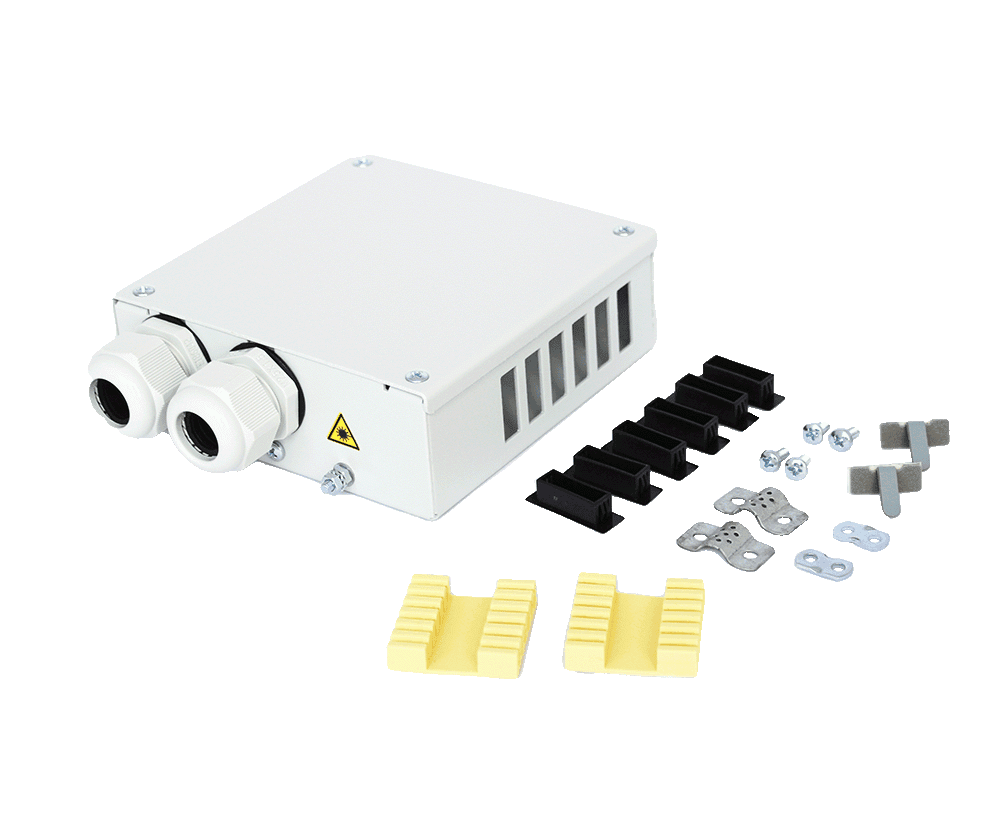

Basic assembly

• Frame and cover
• Holder for 12 fibre protection sleeves, 2 pcs
• Blank plug for SC-D hole, 6 pcs
• Fastening and grounding bar and materials for incoming cables
• Cable inlet sleeve, 2 pcs
