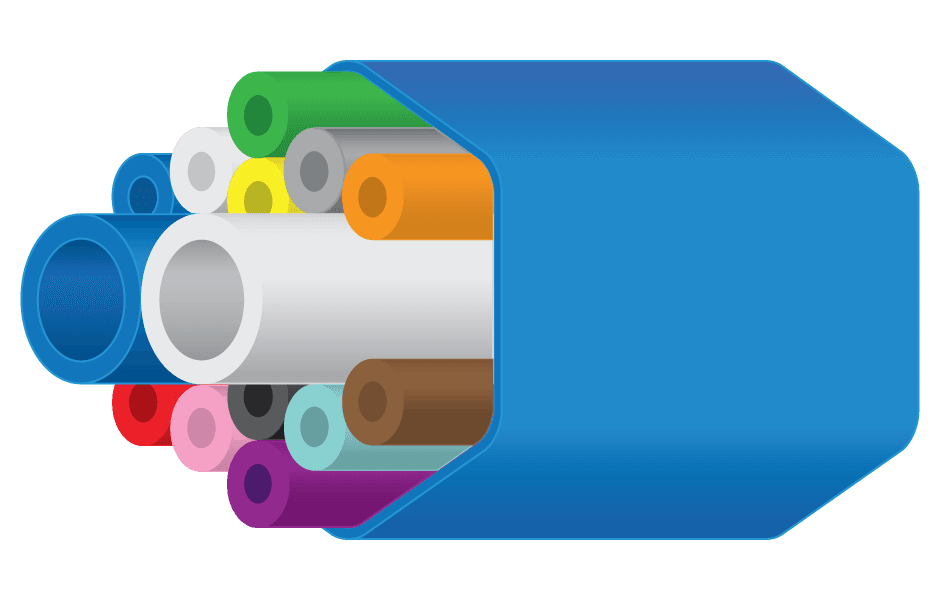

Optimus DB combination microduct bundles
Direct buried combination microduct bundles that contain two different microduct sizes.
Description
Our DB microducts are available in combination microduct bundles that contain two different microduct sizes. Different sizes and configurations are available.
Features
- The individual ducts are made of HDPE.
- The ducts are colour-coded according to customer specifications, FIN 2012, ANSI/TIA, IEC or other.
- Duct bundles can be equipped with a tracer wire according to customer specifications.
- The duct bundles are sheathed with a common HDPE sheath. The nominal sheath thickness is 1,0 ± 0,1 mm.
- Sheath marking is printed on one-meter intervals. The sheath marking is printed according to customer specifications.
Microduct cables suitable for the Optimus DB 7/3.5 mm duct:
- FRMU 1,8 mm
- FRMU 2.1 mm
Microduct cables suitable for the Optimus DB 14/10 mm duct:
- FYORMU Micro 4 mm
- FZOMU-SD Micro, 24–96 fibres
- FZOMU-SD Micro 200 μm (6×24 and 8×24)
There are following accessories for both Optimus DB 7/3.5 mm duct and Optimus DB 14/10 mm duct:
- Straight connector
- End stop
- Gas Block
- Cable seal
- Divisible Seal
Properties
Product information
| Product | Nestor Code | STK |
|---|---|---|
| Optimus DB 2 x 14/10mm + 7 x 7/3,5mm TW Orange | L11701TW | 5218957 |
| Optimus DB 2 x 14/10mm + 12 x 7/3,5mm TW Blue | L11304TW | 5218927 |
| Optimus DB 2 x 14/10mm + 12 x 7/3,5mm TW Orange | L11399TW | 5218953 |
| Optimus DB 4 x 14/10mm + 12 x 7/3,5mm TW Blue | L11509TW | |
| Optimus DB 4 x 14/10mm + 12 x 7/3,5mm TW Orange | L11560TW |
