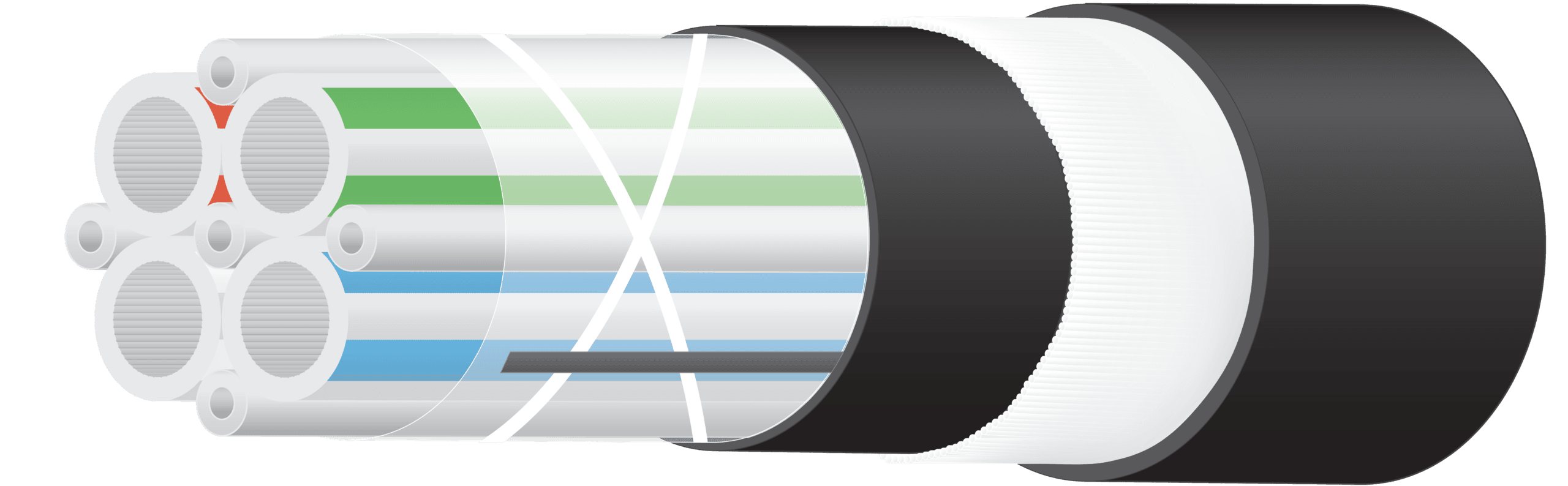

Optimus DB 4 X 12/10 mm + 5 X 5/3,5 mm
Microduct for direct buried installation or installation in existing protective pipes or cable shafts.
Description
Construction
- Material: The individual duct is made of HDPE.
- Colour coding: The duct is color-coded according to customer specifications, FIN 2012, ANSI/TIA, IEC or other.
- Inner sheath: The duct bundle is sheathed with black HDPE inner sheath. The nominal sheath thickness is 0,7 ± 0,1 mm.
- Strength member: Glass yarns between inner and outer sheaths.
- Outer sheath: The duct bundle is sheathed with black HDPE outer sheath. The nominal sheath thickness is 2,5 ± 0,1 mm. Sheath marking is printed on one-meter intervals.
Properties
| Property | |
|---|---|
| Temperature range during installation | - 15 … + 40 °C |
| Temperature range during transport, storage and operation | - 45 … + 60 °C |
Product information
| Product |
|---|
| Optimus DB 4 X 12/10 mm + 5 X 5/3,5 mm |
