Description

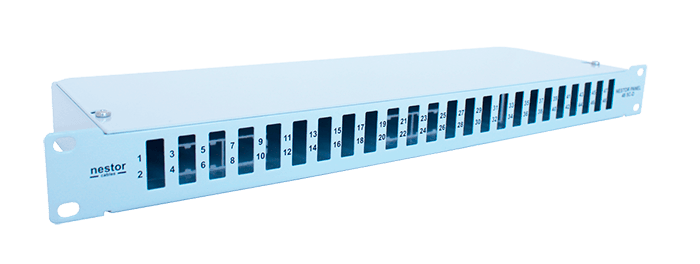

Nestor Panel is a basic patch panel for 19” racks and cabinets. It is available in different models for capacity 24-96 fibres.
- Adapter alternatives:
- SC simplex (24F)
- SC duplex (48F)
- LC duplex (48F)
- LC quad (96F)
- Also available with multimode adapters (SC or LC type)
- The panels can be stacked directly on top of each other
- Simple design with a removable cover
- Nestor Panel can be delivered as a basic assembly, pre-assembled pigtail kit or pre-assembled pigtail cable kit
- Dimensions 430 (19”) x 140 x 44 (1U) mm
- Material Powder-painted galvanized steel
- Color RAL 7035 (grey)
Basic assembly
- Frame and cover
- Holder for 12 splice protection sleeves, 2-8 pcs according to fiber count
- Fastening and grounding materials for incoming cables
- Mounting screws and nuts for 19” installation
Properties
Product information
| Product | Nestor Code | STK |
|---|---|---|
| Nestor Panel 24 SC-S | LV2495 | 7284614 |
| Nestor Panel 48 SC-D | LV2494 | 7284616 |
| Nestor Panel 48 LC-D | LV2493 | 7284615 |
| Nestor Panel 96 LC-Q | LV2496 | 7284617 |
| Nestor Panel LC 24xSMT pigtail kit | LV2651 | 7284705 |
| Nestor Panel LC 48xSMT pigtail kit | LV2652 | 7284706 |
| Nestor Panel SC 24xSMT pigtail kit | LV2653 | 7284707 |
| Nestor Panel SC 48xSMT pigtail kit | LV2654 | 7284708 |
| Nestor Panel SC/APC 12xSMT pigtail kit | LV2659 | 7284709 |
| Nestor Panel SC/APC 24xSMT pigtail kit | LV2660 | 7284710 |
| Nestor Panel SC/APC 48xSMT pigtail kit | LV2661 | 7284711 |
| Nestor Panel LC/APC 48xSMT pigtail kit | LV2662 | 7284712 |
| Nestor Panel LC 96xSMT pigtail kit | LV2663 | 7284713 |
| Nestor Panel LC/APC 96xSMT pigtail kit | LV2664 | 7284714 |
| Nestor Panel SC/APC 24xSML 5m | LV2665 | 7284715 |
| Nestor Panel SC 24xSML 15m | LV2666 | 7284716 |
| Nestor Panel SC 24xSML 25m | LV2667 | 7284717 |
| Nestor Panel SC 24xSML 50m | LV2668 | 7284718 |
| Nestor Panel SC 48xSML 5m | LV2669 | 7284719 |
| Nestor Panel SC 48xSML 15m | LV2670 | 7284720 |
| Nestor Panel SC 48xSML 25m | LV2671 | 7284721 |
| Nestor Panel SC 48xSML 50m | LV2672 | 7284722 |
| Nestor Panel SC/APC 48xSML 5m | LV2673 | 7284723 |
| Nestor Panel SC/APC 48xSML 15m | LV2674 | 7284724 |
| Nestor Panel SC/APC 48xSML 25m | LV2675 | 7284725 |
| Nestor Panel SC/APC 48xSML 50m | LV2676 | 7284726 |
| Nestor Panel LC 48xSML 5m | LV2677 | 7284727 |
| Nestor Panel LC 48xSML 15m | LV2678 | 7284728 |
| Nestor Panel LC 48xSML 25m | LV2679 | 7284729 |
| Nestor Panel LC 48xSML 50m | LV2680 | 7284730 |
| Nestor Panel LC/APC 48xSML 5m | LV2681 | 7284731 |
| Nestor Panel LC/APC 48xSML 15m | LV2682 | 7284732 |
| Nestor Panel LC/APC 48xSML 25m | LV2683 | 7284733 |
| Nestor Panel LC/APC 48xSML 50m | LV2684 | 7284734 |
| Nestor Panel LC/APC 2x48xSML 5m | LV2685 | 7284735 |
| Nestor Panel LC/APC 2x48xSML 15m | LV2686 | 7284736 |
| Nestor Panel LC/APC 2x48xSML 25m | LV2687 | 7284737 |
| Nestor Panel LC/APC 2x48xSML 30m | LV2688 | 7284738 |
| Nestor Panel LC/APC 2x48xSML 50m | LV2689 | 7284739 |
