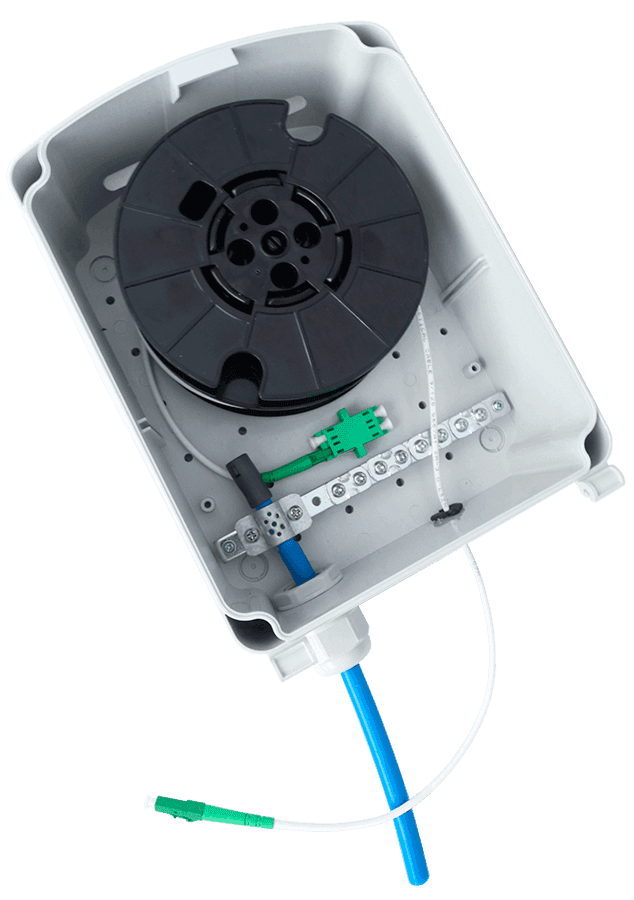

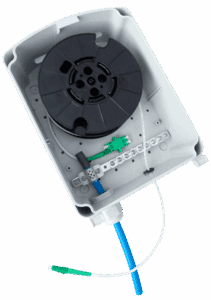

Nestor OptoBox 48 Plug and Play Home Kit
Wall mounted termination box for indoor and outdoor installations.
Description
Nestor OptoBox 48 Plug and Play Home Kit is designed especially for networks built by using Plug and Play method. Delivered as a Plug and Play home kit including connectorized indoor cable, adapters, slack reels and all needed materials for FTTH connections in microduct networks
Features
- Mounting and grounding bar with grounding clips and fixing clamp for incoming microduct
- Removable and hinged lid
- Equipped with lock
- Place for two SC-S or LC-D adapters
- Adapters can be stacked on top of each other in the holder
- One pre-installed adapter according to selected connector type
- Two slack reels for drop cable and indoor cable
- One slack reel can hold up to
- 15 m of 3 mm cable
- 30 m of 2 mm cable
- 130 m of 1 mm cable
- Inlets and outlets
- One pre-installed M20 x 1.5 cable gland for Ø 7-14mm cable diameters
- One stepped grommet for optional outlet for max. Ø 9mm cable diameters
- Dimensions: W156 mm x H213 mm x D96 mm
- IP code: IP 66
- Material: PC (polycarbonate), UL 94 V-2 classified
- Color: RAL 7035 (grey)
Properties
| Property | |
|---|---|
| Dimensions | W156 mm x H213 mm x D96 mm |
| IP code | IP 66 |
| Material | PC (polycarbonate), UL 94 V-2 classified |
| Colour | RAL 7035 (grey) |
Product information
| Product | Nestor Code | STK |
|---|---|---|
| Nestor OptoBox 48 P&P Home Kit LC-APC/LC-APC 10 m | LV3544 | 7284962 |
| Nestor Optobox 48 P&P Home Kit LC-APC/SC-APC 10m | LV3620 | |
| Nestor Optobox 48 P&P Home Kit LC-APC/SC-APC 15m | LV3621 |
