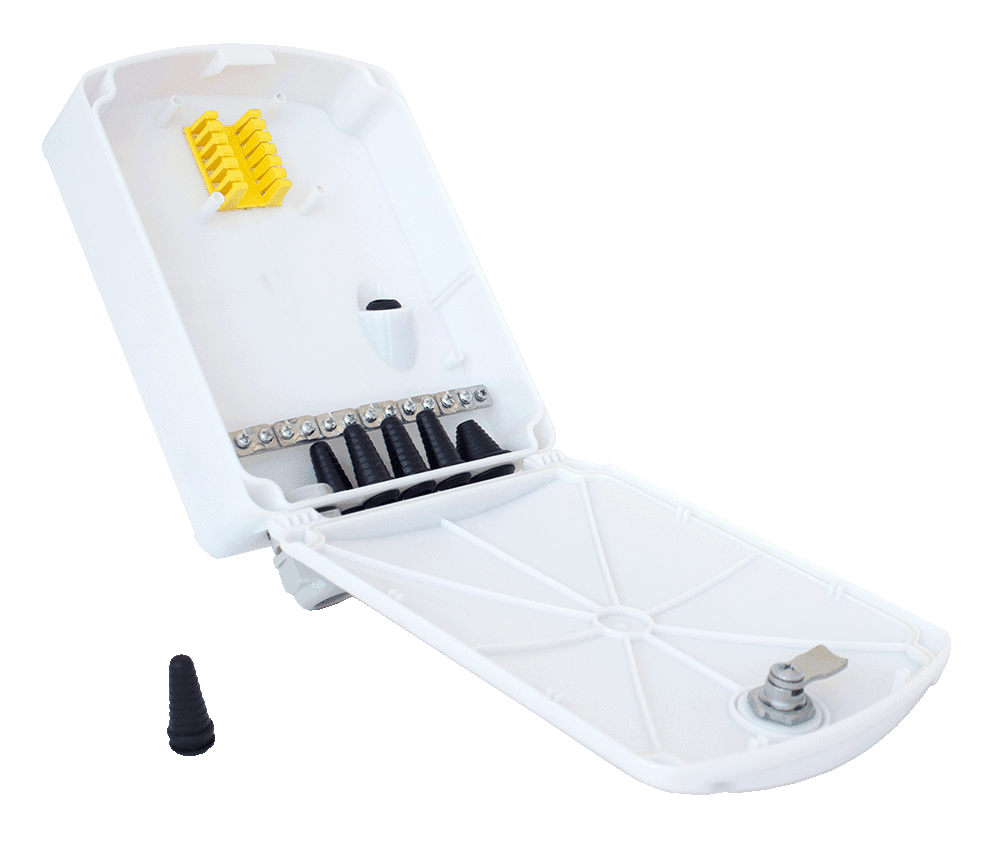

Nestor OptoBox 24

Nestor OptoBox 24 is a wall mounted termination box for indoor and outdoor installations. It is suitable for terminating and jointing different types of optical cables and microducts. Delivered as a basic assembly or as a pre-installed pigtail kit including pre-installed adapters and pigtails according to customer specifications. Also available as pre-assembled pigtail cable kit with 0-100 m connectorized indoor cable with tested connectors pre-installed to adapters

• Inlets and outlets (bottom)
  • 1 pc stepped grommet for max. Ø 17 mm cable diameters
  • 1 pc M20 x 1.5 cable gland for Ø 7-14 mm cable diameters
  • 6 pcs stepped grommets for max. Ø 9 mm cable diameters
• Inlets and outlets (Back wall)
  • 1 pc angled stepped grommet for max. Ø 9 mm cable diameters
  • 1 pc optional stepped grommet for max. Ø 9 mm cable diameters
• Capacity
  • 48 fiber splices without connectors
  • 24 fiber splices with LC-connectors
  • 12 fiber splices with SC-connectors
• Mounting and grounding bar with grounding clips
• Removable hinged lid, equipped with lock
• Place for adapter plate
• Integrated cable excess management system in the back wall

Basic assembly

• Frame 1 pc
• Removable hinged lid with seal and O-ring 1 pc
• Lock, compatible with triangular key 1 pc
• Splice sleeve holder for 24 fiber protection sleeves 1 pc
• M20 x 1.5 cable gland 1 pc
• Stepped grommets 9 pcs
• Cable management clips 4 pcs
• Fastening and grounding materials for incoming cables

Accessories

• Adapter plate for 12 LC-D or SC-S adapters
• Available also pre-assembled with adapters
• Splice sleeve holder for 24 fibre protection sleeves
• Pigtails according to customer specifications
• SC/UPC, SC/APC, LC/UPC, LC/APC
• PLC-splitters according to customer specifications
• 1×2, 1×4, 1×8, 1×16, 1×32
