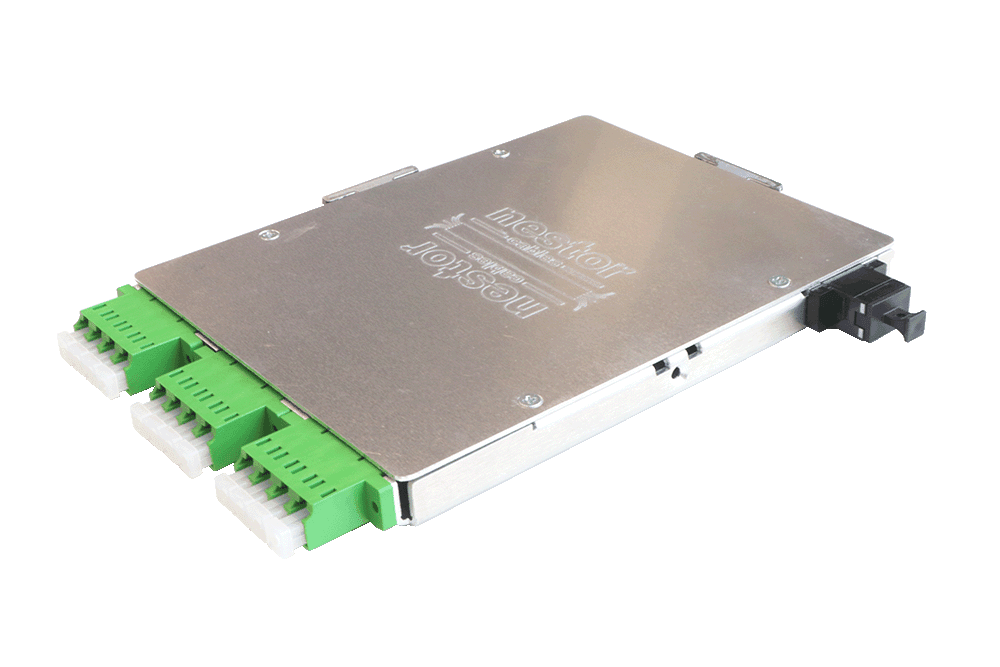

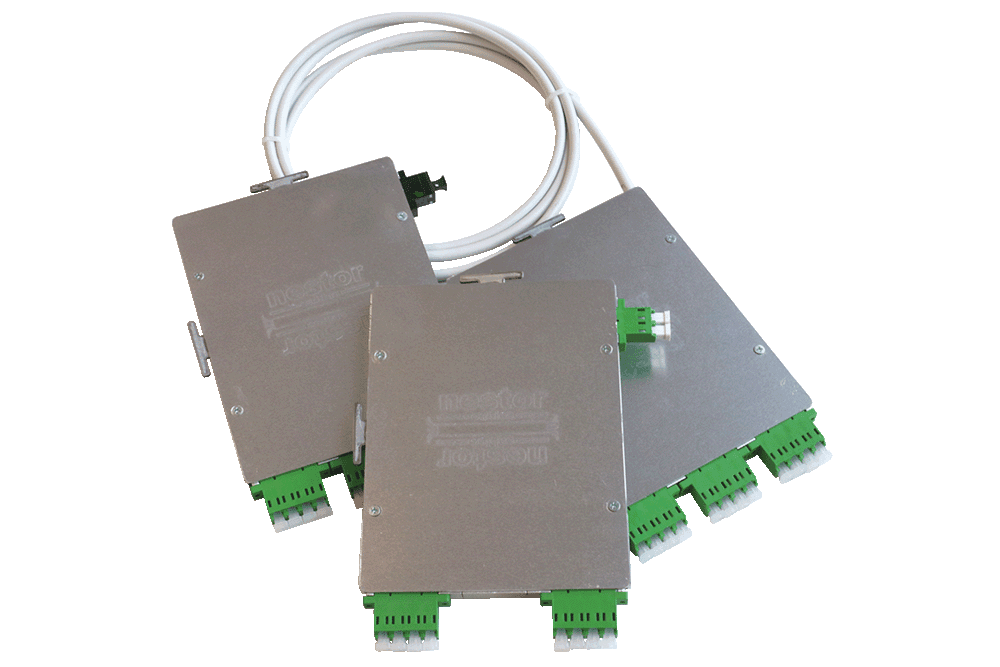

Nestor Mini Panel
Nestor Mini Panel is suitable for a wide variety of Plug & Play applications or network expansions.
Description
Speed up your network projects with the Nestor Mini Panel! Nestor Mini Panel is designed for quick and easy installations. It reduces on-site time and increases the speed of deployment.
Nestor Mini Panel is a part of Plug & Play concept where pre-connectorized products are used when building up the network.
Features
- Customizable according to customer needs and available with multiple configurations
- Pigtail kits, pigtail cable kits, splitters or MPO
- Possible to configure needed components precisely
- Designed to operate flexibly in various installations
- Mini Panels can be stacked on top of each other for expanded configurations
- Multiple cable and connector exit options on the back ensure fibre routing to correct direction
- Metallic hooks for easy mounting in street cabinets and ODFs.
- Compact size and robust metallic construction
- Allows network expansions even if there is no need or space left for 19” panels
- Made of aluminum sheet
Properties
| Product | Type |
|---|---|
| Nestor Mini Panel | 19" products, Patch panels |
Product information
| Product | Nestor Code | Type |
|---|---|---|
| NMP-MPO(M)-LCA-1x12-R2-NA | LV3693 | MPO breakout |
| NMP-SPL-LCA-1x4-R2-NA | LV3694 | PLC splitter |
| NMP-SPL-LCA-1x8-R2-NA | LV3695 | PLC splitter |
| NMP-SPL-LCA-1x16-R2-NA | LV3696 | PLC splitter |
| NMP-SPL-LCA-1x32-R2-NA | LV3697 | PLC splitter |
| NMP-SPL-LCA-1x32-R2-NA | LV3698 | PLC splitter |
| NMP-HKP-LCA-12xSMT-NA-HS | LV3699 | Pigtail kit |
| NMP-HKP-SCA-6xSMT-NA-HS | LV3704 | Pigtail kit |
| NMP-HKA-LCA-12xSML-5M-R2-NA | LV3700 | Pigtail cable |
| NMP-HKA-LCA-12xSML-15M-R2-NA | LV3701 | Pigtail cable |
| NMP-HKA-LCA-12xSML-15M-R2-NA | LV3702 | Pigtail cable |
| NMP-HKA-LCA-12xSML-50M-R2-NA | LV3703 | Pigtail cable |
| NMP-SPLS-LCA-1x4-NA-HS | LV3724 | PLC splitter |
| NMP-SPLS-LCA-1x8-NA-HS | LV3725 | PLC splitter |
| NMP-SPLS-LCA-1x16-NA-HS | LV3726 | PLC splitter |
| NMP-SPLS-LCA-1x32-NA-HS | LV3727 | PLC splitter |
