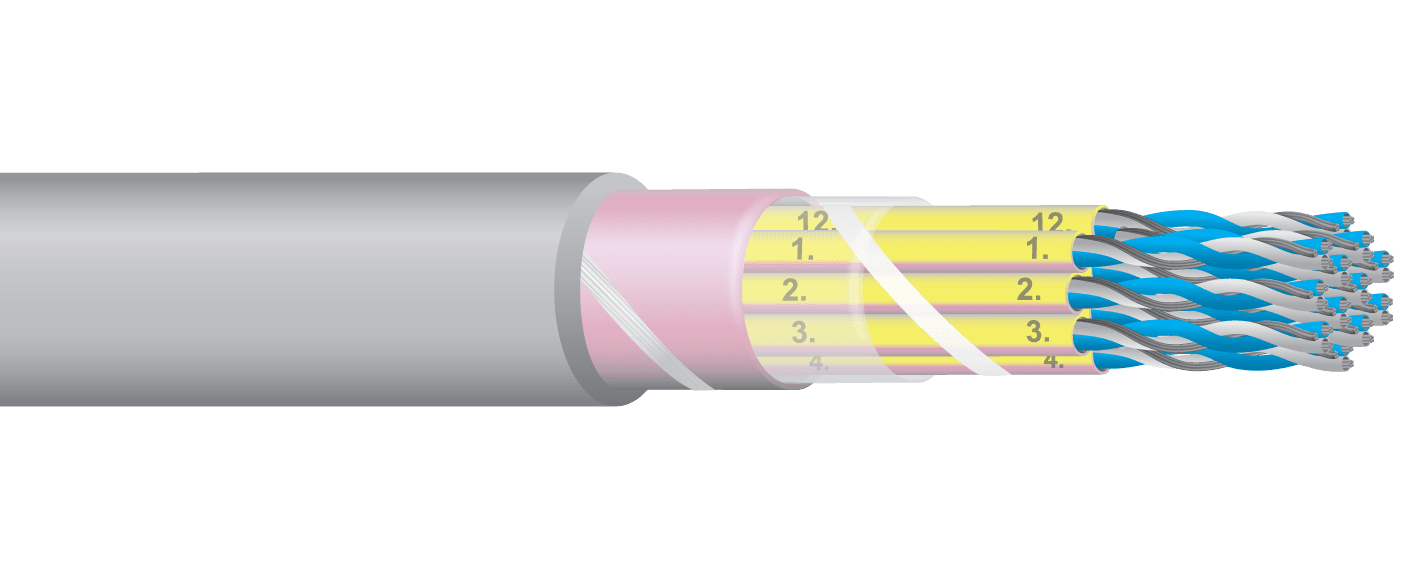

KJAAM-HF C-Proof

Instrumentation cable for fixed installation in automation, process control, and audio systems. Suitable for digital and analog signals. Can be installed indoors and also outdoors on cable trays.

Standards

• Testing EN 50289-x-x, EN 50290-x-x
• Reaction to fire: Cca -s1,d1,a1

Construction

• Conductor: Stranded tinned copper 7×0,29 mm
• Min. sheath thickness: 1,20 mm
• Insulation: Solid PE, LSZH outer layer
• Pair: Two conductors twisted together with an earth conductor. Each pair individually shielded with plastic-aluminium tape. Each pair is identified by a number tape. In the pairs all a-conductors are blue and b-conductors are white coloured
• Unit: One, two or four pairs are stranded together to form a unit.
• Common screen: Plastic-aluminium tape with an earth- conductor
• Sheath: Grey (RAL 7035) halogen-free flame retardant and UV-resistant material
