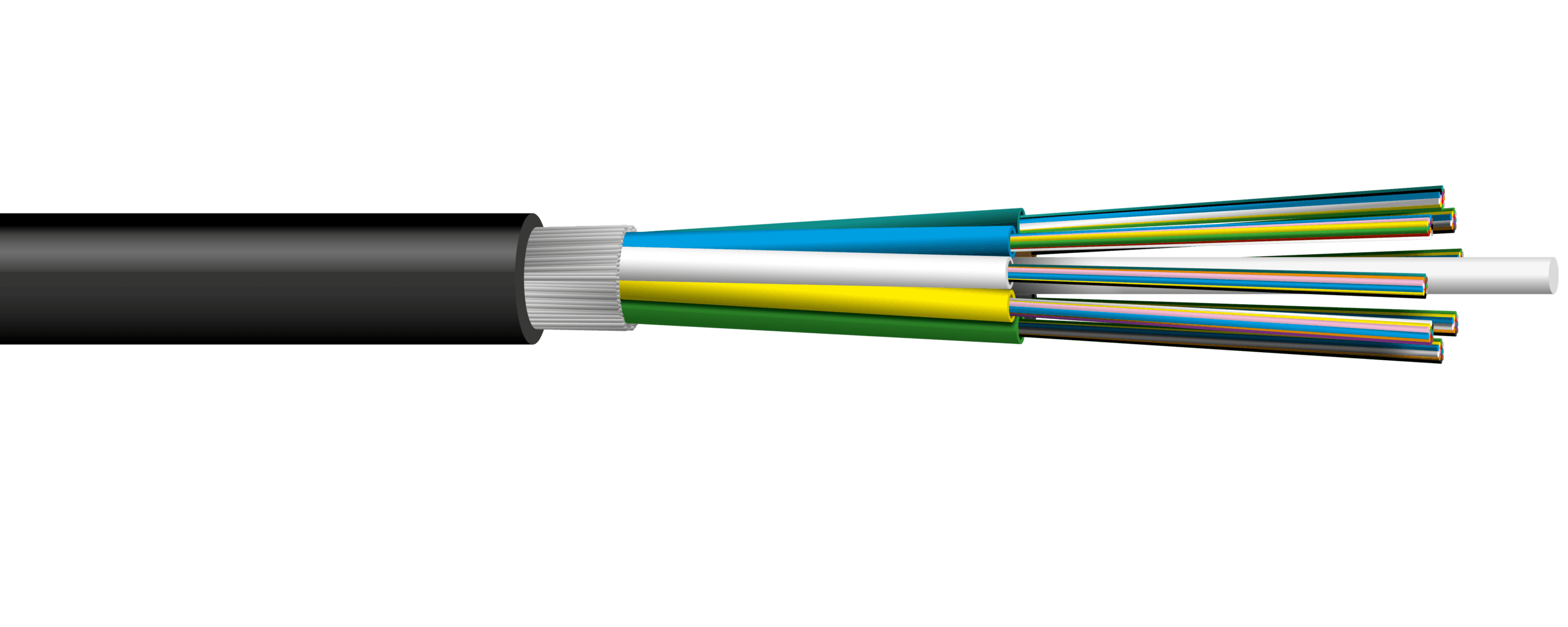

FZOMSU-SD Mini
Lightweigh, halogen free and UV resistant fibre optic cable for duct installation both indoors and outdoors.
Description
FZOMSU-SD Mini is a universal stranded cable suitable for duct installation both indoors and outdoors. The cable is fire retardant according to the IEC 60332-1.
Construction
- Optical fibres: Coloured single-mode fibres according to the ITU-T G.652.D standard.
- Secondary coating: Jelly filled loose tubes made of thermoplastic polymer.
- Fillers: Plastic fillers when applicable.
- Central strength member: Glass fibre reinforced plastic (FRP).
- Cable core stranding: The secondary coating tubes and fillers (when needed) are SZ-stranded around the central strength member.
- Strenght members: A helically stranded layer of fiberglass yarns (waterblocking).
- Rip cord: A non-metallic rip cord is applied under the sheath.
- Outer sheath: Flame retardant, halogen free and UV resistant plastic (LSZH). Colour of the sheath is black. Cable is flame retardant according to the IEC 60332-1.
- Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables – cable type – lot number – year of manufacture – length marking.
All of our fibre optic and copper cables are halogen-free.
Properties
| Property | |
|---|---|
| Max. tension during installation (12-48 fibres) | 1800 N |
| Max. tension during installation (96 fibres) | 2700 N |
| Temperature range during operation | -40 - +70 ºC |
| Temperature range during installation | -15 - +60 ºC |
| Reaction to fire (CPR) | Dca -s2,d2,a2 |
| Minimum bending radius | Installed 10 x diameter, during installation 20 x diameter |
Product information
| Nestor Code | Size | Diameter | Weight | Length | Drum |
|---|---|---|---|---|---|
| L10477 | 1x12xSML | 7.8 mm | 63 kg/km | 2000 m | K8 |
| L10392 | 2x12xSML | 7.8 mm | 63 kg/km | 2000 m | K8 |
| L10393 | 4x12xSML | 7.8 mm | 63 kg/km | 2000 m | K8 |
| L10478 | 8x12xSML | 8.5 mm | 78 kg/km | 2000 m | K10 |
