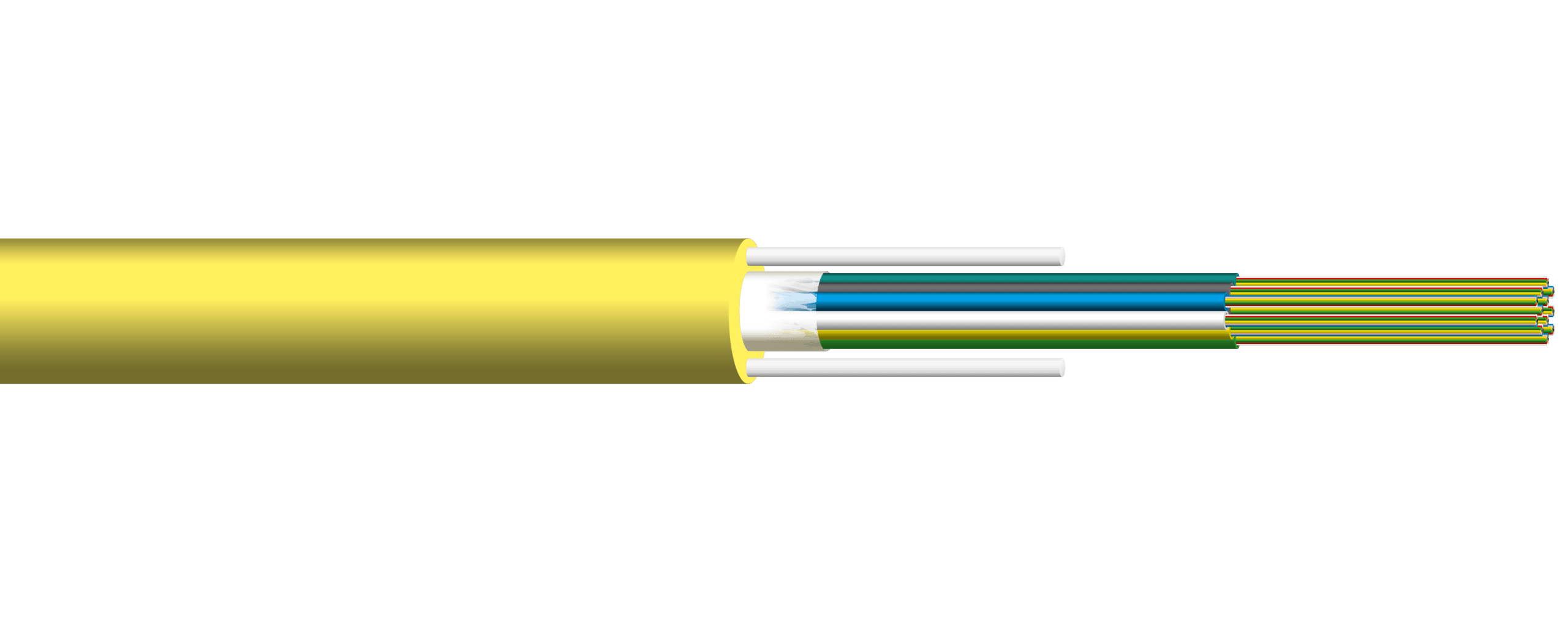

FZ2RMSU C-Proof
Universal non-metallic optical fibre cable for both indoor and outdoor applications (duct installation).
Description
Individual fibre module can be pulled out of cable.
Construction
- Optical fibres: Single-mode fibres according to the ITU-T G.657.A1
- Secondary coating: Flexible colour coded fibre modules. Fibres are housed in thin-walled tubes made of HFFR compound. Water blocking yarn inside the tube. Gel free construction.
- Water blocking: Water blocking tape and yarns in the cable core.
- Strength members: Two glass fibre reinforced plastic rods (FRP) in the sheath. Nominal rod diameter is 1,0 mm.
- Outer sheath: Flame retardant, halogen free and UV resistant plastic (LSZH). Colour of the sheath is yellow. Nominal sheath thickness is 1,5 mm.
- Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables – cable type – lot number – year of manufacture – length marking
All of our fibre optic and copper cables are halogen-free.
Properties
| Property | |
|---|---|
| Max. tension during installation, fibre elongation ≤ 0.33% | 600 N |
| Max. tension during installation, fibre elongation ≤ 0.6% | 900 N |
| Crush strength with 100 mm plate | 800 N |
| Temperature range during operation, storage, transport | -45 - +60 °C |
| Temperature range during installation | -15 - +60 °C |
| Reaction to fire (CPR) | Cca -s1,d0,a1 |
| Minimum bending radius | Installed 10 x diameter, during installation 20 x diameter |
Product information
| Nestor Code | Size | Diameter | Weight | Length | Drum |
|---|---|---|---|---|---|
| L11380 | 1x12xG.657.A1 | 6.7 mm | 43 kg/km | 2000 m | P8 |
| L11381 | 2x12xG.657.A1 | 7.7 mm | 54 kg/km | 2000 m | P8 |
| L11382 | 4x12xG.657.A1 | 7.7 mm | 57 kg/km | 2000 m | P8 |
| L11383 | 8x12xG.657.A1 | 9.4 mm | 80 kg/km | 2000 m | P10 |
| L11384 | 16x12xG.657.A1 | 11.7 mm | 112 kg/km | 2000 m | P12 |
| L11672 | 2x12xG.657.A1 TIA | 7.7 mm | 54 kg/km | 2001 m | P8 |
