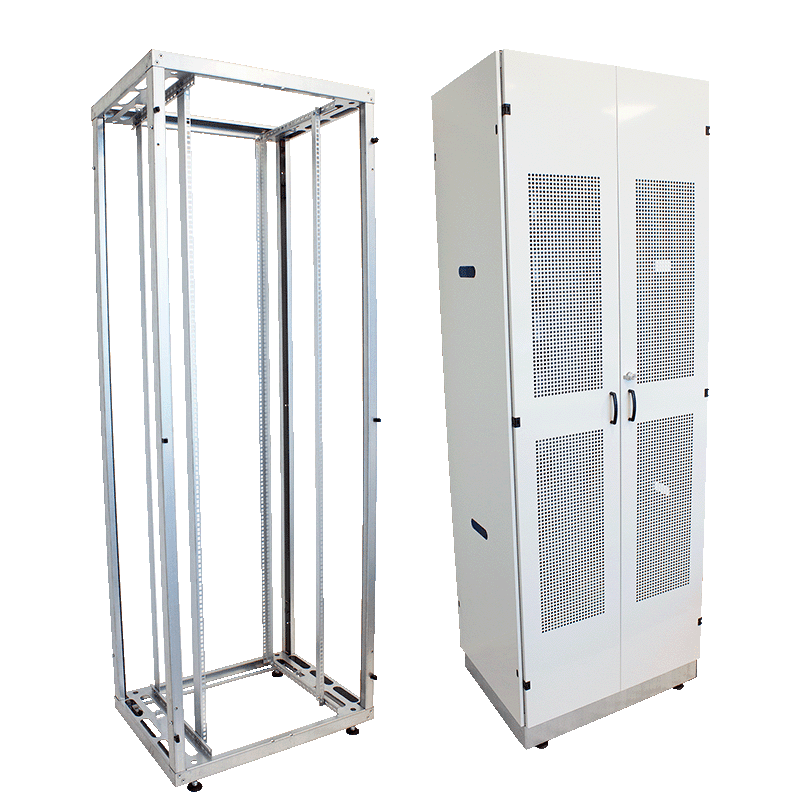

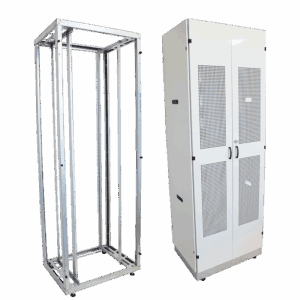

Connection cabinet NC-2000
Connection cabinet NC-2000 has a 19” construction and modular design.
Description
Possibility to place fibre terminations and active equipment into the same cabinet. Cabinets are equipped with accessories for handling a big quantity of fibres. Thanks to individual modules, cabinets can be easily customized according to customer specifications.
- 19” mounting bars on the front and back of the cabinet frame
- Removable walls and roof o Multiple door options
- Adjustable feet in the basic stand
- Wide entrances for cables on the roof
- Mounting and grounding plate for incoming cables
- Cable guides on the management module for handling a big quantity of patch cords
- Guiding hooks on the mounting module for pigtail cables and for fibre tubes
- Electric outlet panel with 9 grounded sockets for active equipment
- A holder for documents inside the front door or side walls
- Standard frame sizes: 800 (W) x 600 (D) x 2000 (H) mm and 800 (W) x 600 (D) x 2200 (H) mm
Properties
| Property | |
|---|---|
| Material | Galvanized steel |
| Color | RAL 7035 (grey) |
| Standard frame size LV2586 | 800 (W) x 600 (D) x 2000 (H) mm |
| Standard frame size LV2575 | 800 (W) x 600 (D) x 2200 (H) mm |
Product information
| Product | Nestor Code | STK |
|---|---|---|
| NC-2000 Cabinet frame 800x600x2000mm | LV2586 | 7284648 |
| NC-2000 Side wall LV2586 | LV2587 | 7284743 |
| NC-2000 Back wall LV2586 | LV2588 | 7284744 |
| NC-2000 Basic door LV2586 | LV2589 | 7284745 |
| NC-2000 Door with grill LV2586 | LV2590 | 7284746 |
| NC-2000 Basic door with lock LV2586 | LV2591 | 7284747 |
| NC-2000 Door with grill and lock LV2586 | LV2592 | 7284748 |
| NC-2000 Management module LV2586 | LV2593 | 7284749 |
| NC-2000 Mounting module LV2586 | LV2594 | 7284750 |
| NC-2000 Ceiling LV2575 & LV2586 | LV2577 | 7284751 |
| NC-2000 Document holder LV2575 & LV2586 | LV2585 | 7284752 |
| NC-2000 Cabinet frame 800x600x2200mm | LV2575 | 7284653 |
| NC-2000 Side wall LV2575 | LV2576 | 7284753 |
| NC-2000 Back wall LV2575 | LV2578 | 7284754 |
| NC-2000 Basic door LV2575 | LV2579 | 7284755 |
| NC-2000 Door with grill LV2575 | LV2580 | 7284756 |
| NC-2000 Basic door with lock LV2575 | LV2581 | 7284757 |
| NC-2000 Door with grill and lock LV2575 | LV2582 | 7284758 |
| NC-2000 Management module LV2575 | LV2583 | 7284759 |
| NC-2000 Mounting module LV2575 | LV2584 | 7284760 |
| Mounting and grounding plate for 19” racks | LV1151 | 7284160 |
| Electric outlet panel with 9 grounded sockets | LV2604 | 7284761 |
| Guiding hook for patch cords, 10 pcs/packet | LV1228 | 7284196 |
| Storage shelf for patch cords NC-2000 | LV1230 | 7284198 |
| Guide for patch cords NC-2000, grey | LV1537 | 7284334 |
| Guiding panel 1U NC-2000 | LV1291 | 7284234 |
| Splice tray holder NC-2000, vertical | LV1293 | 7284235 |
| Splice tray holder NC-2000, horizontal | LV1652 | 7284459 |
