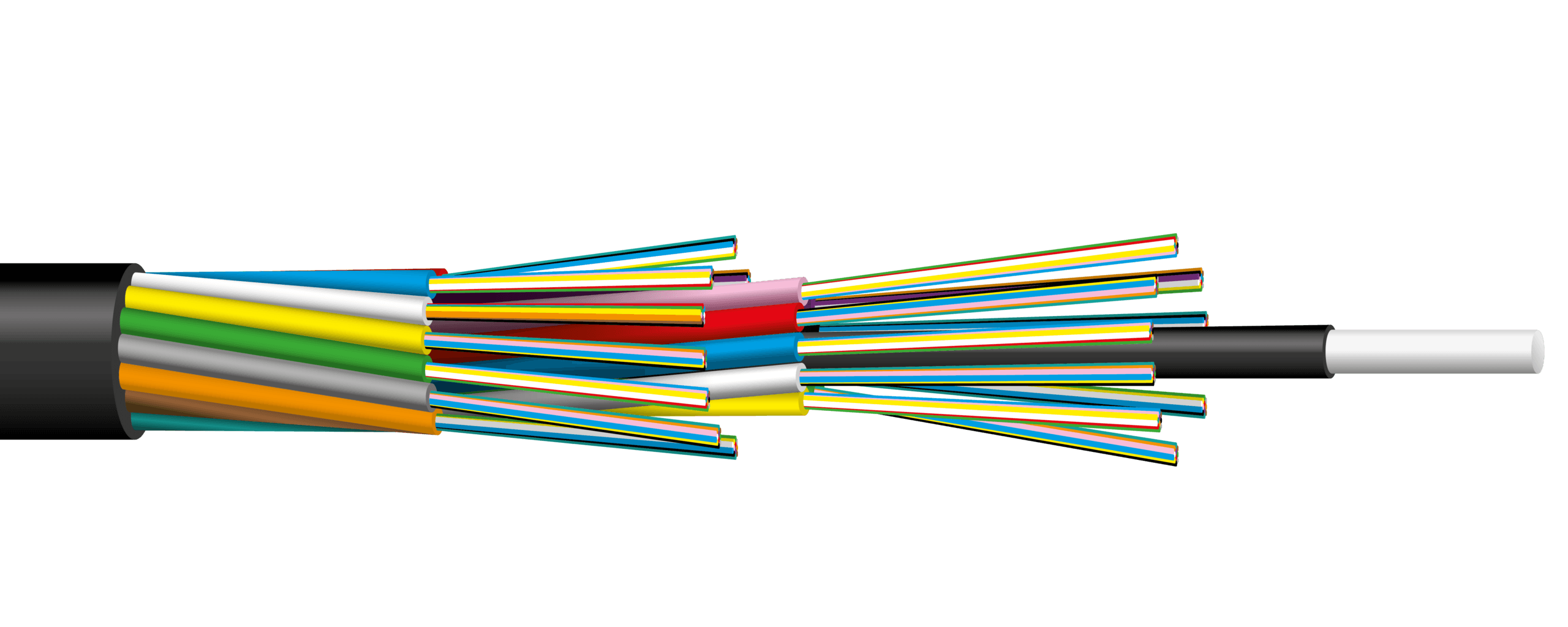

FZOMU-SD Micro
Optical fibre cable for microduct installation by blowing.
Description
FZOMU-SD Micro is a cable for microducts. Its secondary coating tubes are stranded around the central strength member and water blocking is achieved through dry water blocking elements.
This type is also known as:
- A-DQ(ZN)2Y Mini (VDE 0888)
- GRHLDV Micro (S12)
Construction
- Optical fibres: Coloured single-mode fibres according to the ITU-T G.652.D standard.
- Secondary coating: Jelly filled loose tubes made of thermoplastic polymer.
- Fillers: Black plastic fillers when applicable.
- Central strength member: Glass fibre reinforced plastic (FRP).
- Cable core stranding: The secondary coating tubes and fillers (when needed) are SZ-stranded around the central strength member.
- Water blocking: Dry water blocking elements.
- Rip cord: A non-metallic rip cord is applied under the sheath.
- Outer sheath: The cable sheath consists of UV resistant black HDPE. Nominal sheath thickness is 0,5 mm.
- Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables – cable type – lot number – year of manufacture – length marking.
All of our fibre optic and copper cables are halogen-free.
Properties
| Property | |
|---|---|
| FZOMU-SD Micro | |
| Maximum tension during installation (12-48 fibres) | 750 N |
| Maximum tension during installation (96 fibres) | 1 000 N |
| Crush strength with 100 mm plate | 500 N |
| Temperature range during operation | -40 - +70 °C |
| Temperature range during installation | -15 - +60 ºC |
| Reaction to fire (CPR) | Fca |
| Minimum bending radius | During installation 20 x diameter, installed 15 x diameter |
Product information
| Nestor Code | Size | Diameter | Weight | Length | Drum |
|---|---|---|---|---|---|
| L10496 | 2x12xSML | 5.6 mm | 24 kg/km | 4000 m | P8 |
| L10421 | 4x12xSML | 5.6 mm | 25 kg/km | 4000 m | P8 |
| L10497 | 6x12xSML | 5.6 mm | 25 kg/km | 4000 m | K9 |
| L10498 | 8x12xSML | 6.4 mm | 36 kg/km | 4000 m | P10 |
| L10638 | 12x12xSML | 8.1 mm | 54 kg/km | 4000 m | K12 |
| L11342 | 24x12xSML | 9.9 mm | 76 kg/km | 4000 m | K14 |
| L10634 | 8x24xSML | 8.1 mm | 51 kg/km | 4000 m | P10 |
