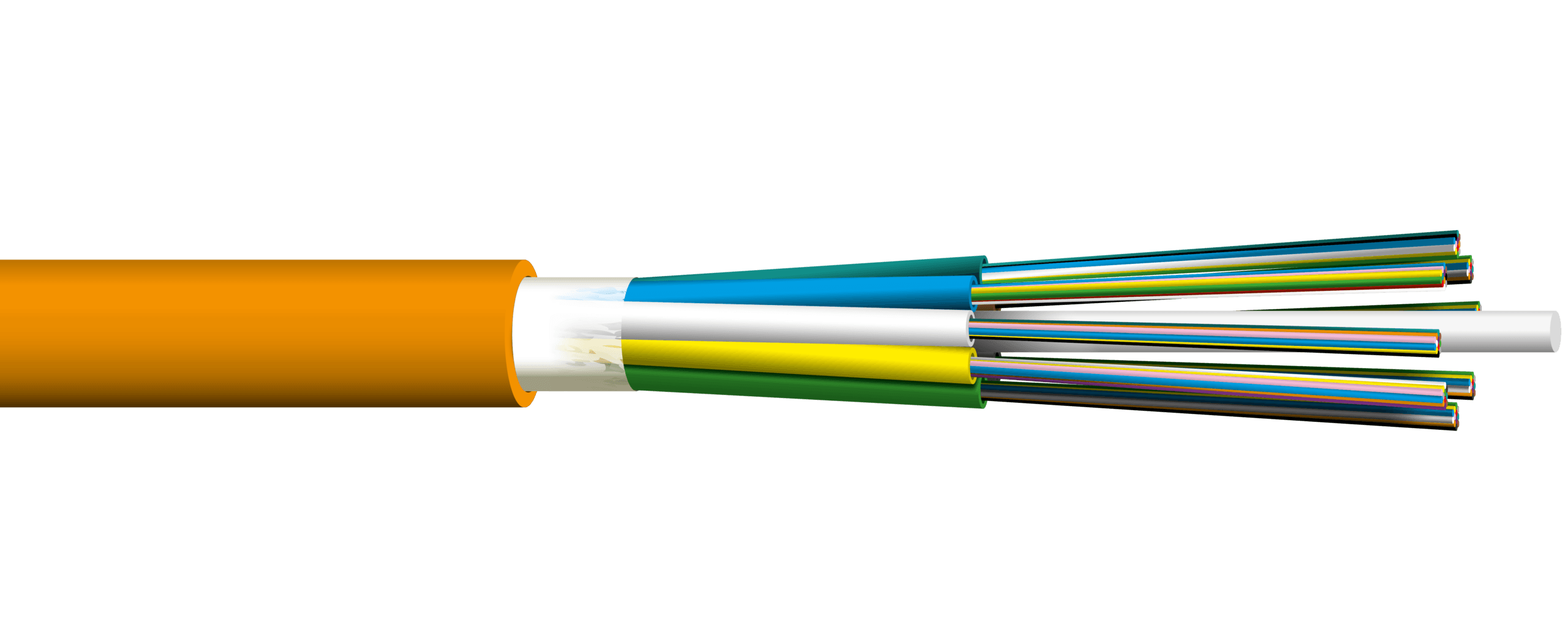

FZOMSU-SD

FZOMSU-SD is a stranded cable suitable for duct installation outdoors and indoors. The cable is fire retardant according to the IEC 60332-1.

Construction

• Optical fibres: Coloured single-mode fibres according to the ITU-T G.652.D standard. Also availabe with multimode fibres.
• Secondary coating: Jelly filled loose tubes made of thermoplastic polymer.
• Fillers: Black plastic fillers when applicable.
• Central strength member: Glass fibre reinforced plastic (FRP).
• Cable core stranding: The secondary coating tubes and fillers (when needed) are SZ-stranded around the central strength member.
• Wrapping: The cable core is wrapped longitudinally with a water blocking tape.
• Rip cord: A non-metallic rip cord is applied under the sheath.
• Outer sheath: Flame retardant, halogen free and UV resistant plastic (LSZH). Colour of the sheath is orange. Nominal sheath thickness is 1,4 mm. Cable is flame retardant according to the IEC 60332-1.
• Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables – cable type – lot number – year of manufacture – length marking.

All of our fibre optic and copper cables are halogen-free.
