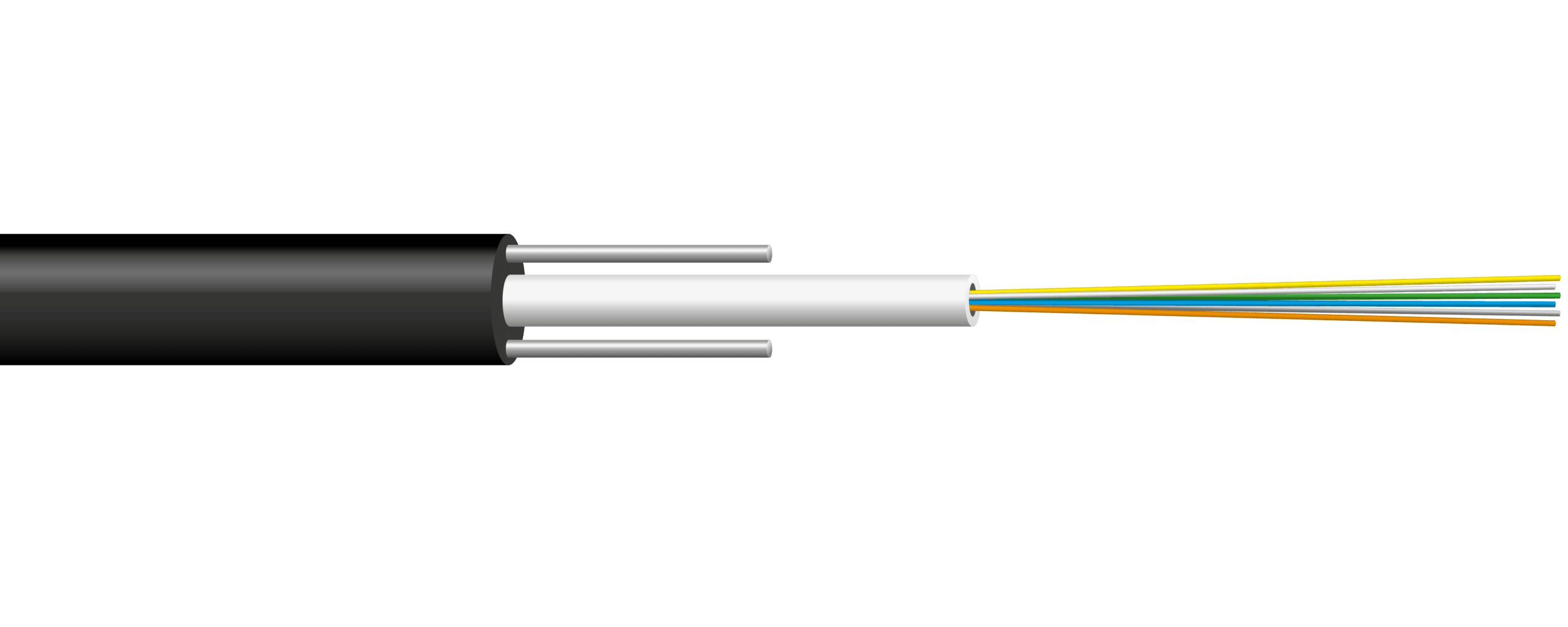

FYO2PMU Mini
Lightweigh fibre optic cable with quick installation.
Description
FYO2PMU Mini is a central tube cable whose improved features result in lightness and remarkably faster installation.
Construction
- Optical fibres: Coloured single-mode fibres according to the ITU-T G.652.D standard.
- Secondary coating: A plastic core tube with jelly filling.
- Strength members: Two 1,2 mm diameter steel wires in the sheath.
- Outer sheath: The cable sheath consists of UV resistant black LLDPE. Minimum sheath thickness is 1,2 mm.
- Sheath marking: Marking printed on the sheath at one meter interval: Nestor Cables – cable type – lot number – year of manufacture – length marking.
All of our fibre optic and copper cables are halogen-free.
Properties
| Property | |
|---|---|
| FYO2PMU Mini | |
| Maximum tension during installation | 3 500 N |
| Crush strength with 100 mm plate | 5 000 N |
| Crush strength sideways with 100 mm plate | 3 500 N |
| Temperature range during operation | -45 - +70 ºC |
| Temperature range during installation | -15 - +70 ºC |
| Reaction to fire (CPR) | Fca |
| Minimum bending radius | Installed 10 x diameter, during installation 20 x diameter |
Product information
| Nestor Code | Size | Diameter | Weight | Length | Drum |
|---|---|---|---|---|---|
| L10612 | 4xSML | 8.9 mm | 57 kg/km | 2000 m | K8 |
| L10613 | 6xSML | 8.9 mm | 57 kg/km | 2000 m | K8 |
| L10614 | 12xSML | 8.9 mm | 57 kg/km | 2000 m | K8 |
